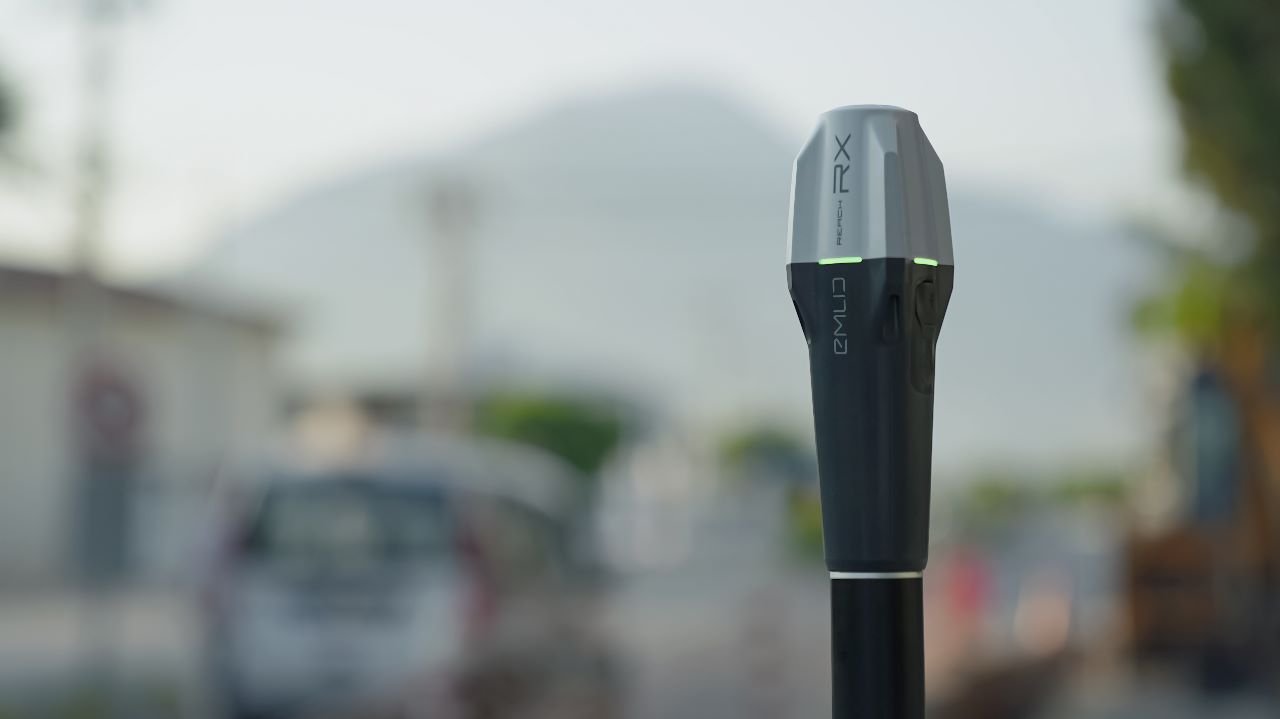

Network RTK Rover With Centimeter Accuracy




Pocket-sized and lightweight receiver.
Works with NTRIP corrections. Easy to set up: just add NTRIP
Reach RX uses Bluetooth, allowing you to connect and start surveying in a few seconds.

Pocket-sized and lightweight
The weight of Reach RX is just 250 grams. Take it anywhere—it weighs less than a can of soda and fits in any glove compartment or a backpack pocket.

Centimeter accurate data
Reach RX tracks GPS/QZSS, Galileo, GLONASS, and BeiDou and gets a fix in under 5 seconds even in challenging conditions.

Anyone on the team can use RTK
Reach RX is designed to meet the expectations of both experienced professionals and non-surveyors who need to get highly-accurate results. No training is required.




Compact & Rugged

250 g | 172 mm x 51 mm x 51 mm
Weighs like a TV remote controller and can be carried in your pocket.

-20 to +65 °C (-4 to 149 °F)
We extensively tested Reach RX in conditions
that simulate the coldest winters and hottest
summers.

IP68
RX is waterproof up to a 1.5 m depth. The connector is sealed and protected from water and dust with a silicone plug.




Reliable battery

16 hours of work
2 days of work or less than 3 hours of charging. You can charge on-the-go from any USB port or power bank.

Li-Ion battery
An industrial battery that handles both high and low temperatures well.

2000+ cycles
of charging and discharging while maintaining original capacity.



SPECIFICATIONS

Mechanical Electrical Positioning
Dimensions 172x51x51 mm
(6,77 x 2,00 x 2,00 pol)		 Autonomy Up to 16 hours RTK H: 7 mm +1 ppm
v: 14 mm + 1 ppm
Mount 5/8"-11 UNC Battery Li-Ion 5200 mAh,
3.6V, 18.72 Wh		 Convergence time ~5s Typically
Weight 250g (8.81 oz) Charging USB Type-C, 5V 2A
Operating tempt -20 to +65C (-4a 149F) Certification FCC, CE, IC
Ingress protection IP68 (max depth of 1.5 Meters
up to 30 minutes)
Connectivity Data GNSS
Communication interface Bluetooth 4.2 Input data format RTCM3 Signal tracked GPS/QZSS L1C/A, L2C,
GLONASS L1OF, L2OF,
BeiDou B1I, B2I,
Galileo E1B/C, E5b
Ports USB Type-C Input data protocol NTRIP Number of Channels 184
Position data format NMEA Update Rate 5 Hz
